Features and advantages
? 4 + 1 axes (Y1-Y2-X-R-C)
?Bending force:600KN,1100KN,1600KN,2000KN,3000KN
? Mechanical crowning system B-CM
? Low maintenance costs
? Back gauge type GHP-2 (X-R axes)
? Front support arm type EZ
? Safety devices
Economic press brake

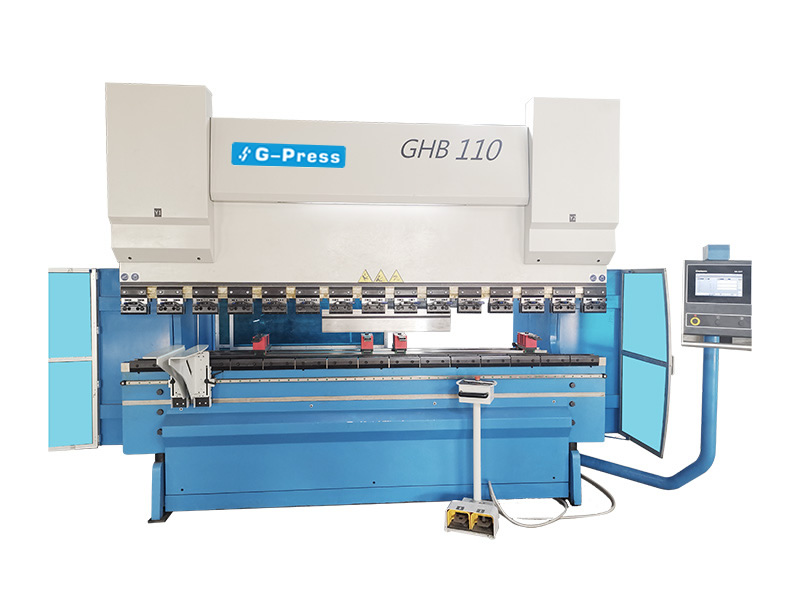

The GHB series is an economical line of user-friendly press brakes, with structural stability, high profitability and bending precision. It is suitable for those customers that do not need high bending tolerances.
Main Configuragtion
CNC System-ESAs640

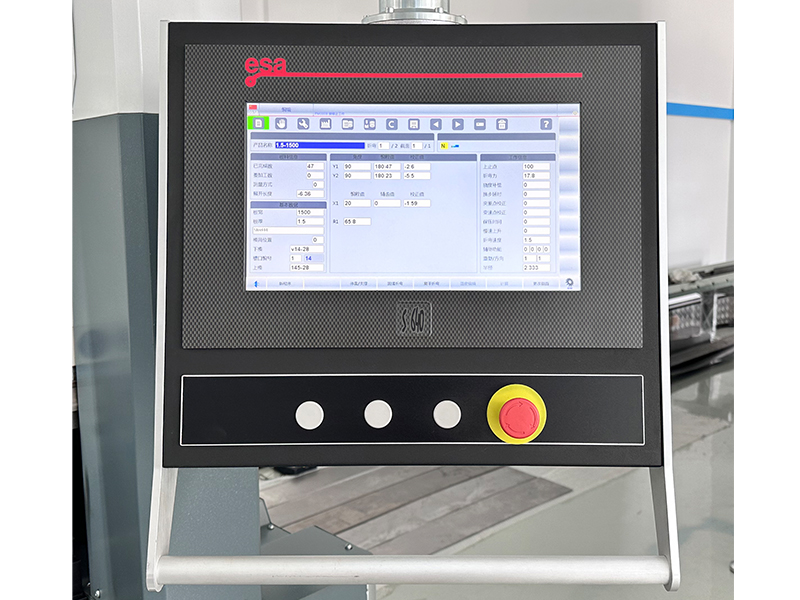

1.The large screen, wide field of vision, and comfortable user experience enhance the full-image editing interface.
2.Automatic optimization of bending steps, pre-compensation database of sheet types (optional function).
3.Angular deflection compensation is supported.
4.Dynamic deflection compensation is supported to ensure perfect linear bending.
5.Support Mitutoyo protractor and angle inspection equipment, so that you can directly grasp the angle variables.
Hydraulic system

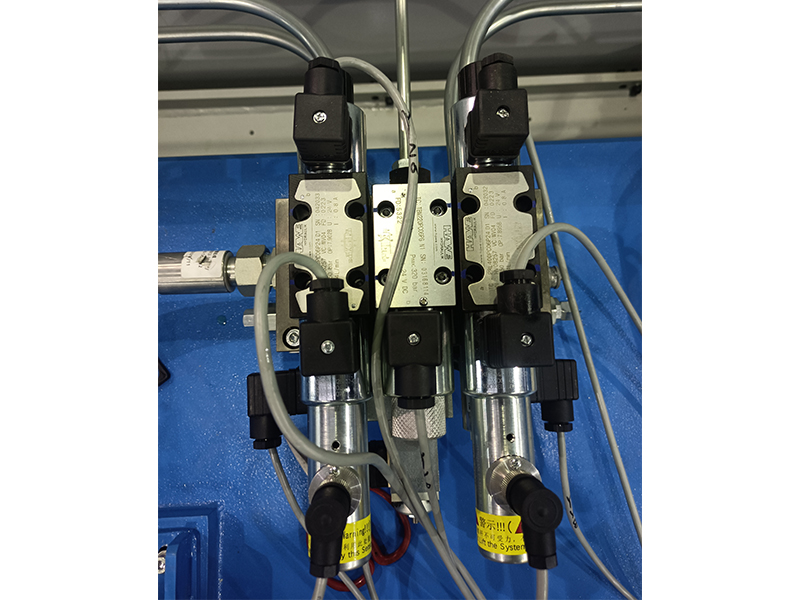

HAWE Hydraulics: The press brake hydraulic control system consists of a SAKB pressure control block and two independent filling valves to ensure the precise and efficient operation of the CNC press brake. All valves (except the filling valve) are integrated into a single control unit. The bending force flow is controlled by proportional technology. In this way, the operating speed (fast down, work and return) and the required pressure can be controlled.
1. Suitable for models with bending forces up to 2,000kN.
2。 The PIH and PSH valves are powered simultaneously by solenoid coils at both ends of the solenoid valve, providing very fast and precise control.
3. Other options such as hydraulic clamping module or proportional hydraulic deflection compensation can be connected to the hydraulic system module interface. The system complies with valid accident prevention regulations and is certified with a Type Examination Certificate No. 13028.

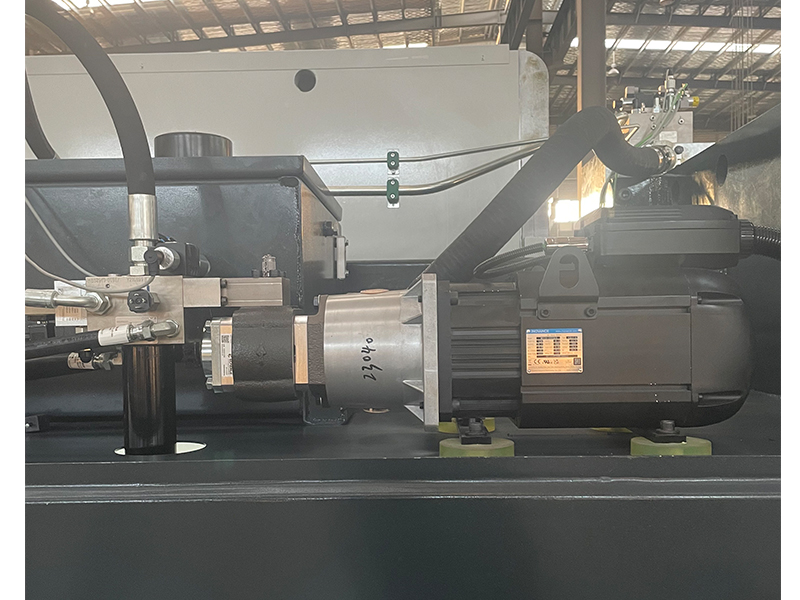

Servo motor
The servo motor has excellent acceleration performance, which is ideal for high-speed and precision press brakes.
peculiarity：
1.High feed smoothness
2.Large torque range
3.The top speed is high
4.High-resolution encoders
Merit:
1.High travel speed when moving downward and backward
2.High energy saving
3.Extend the life of pumps, oils, filters and all related components.
Backgauge system

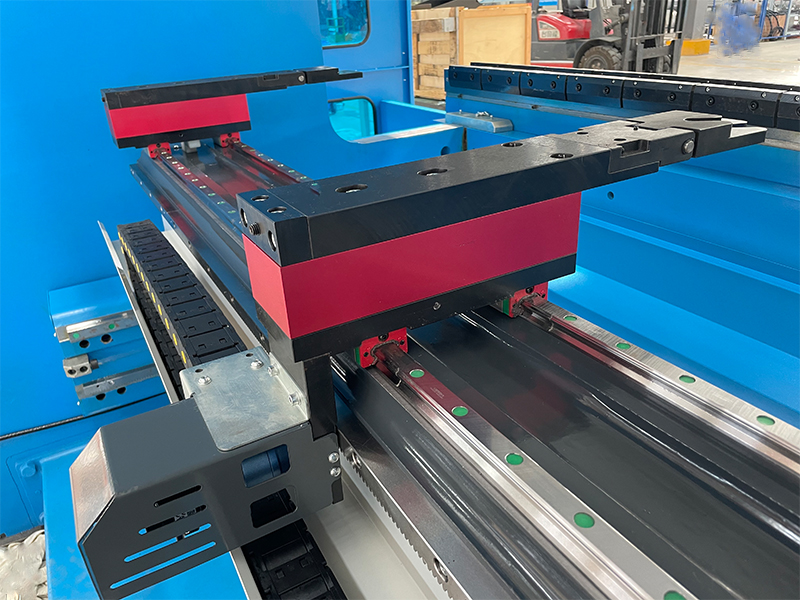

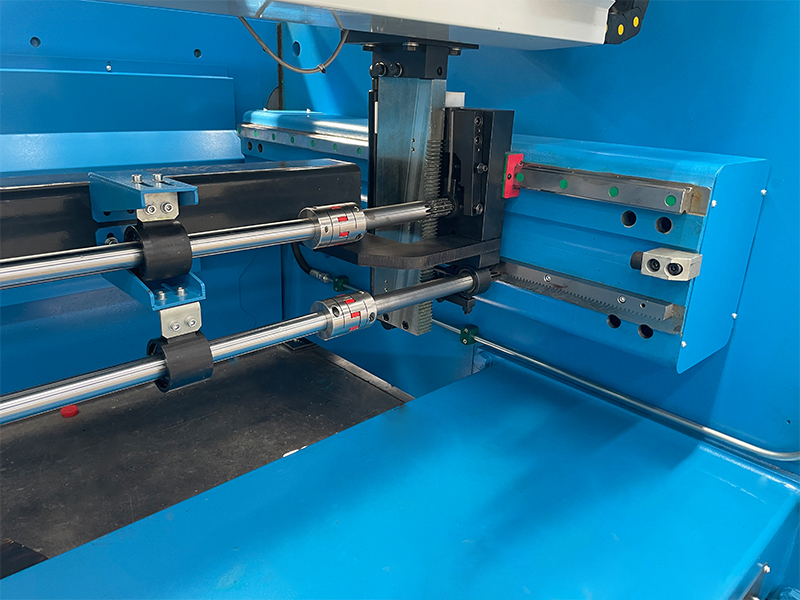

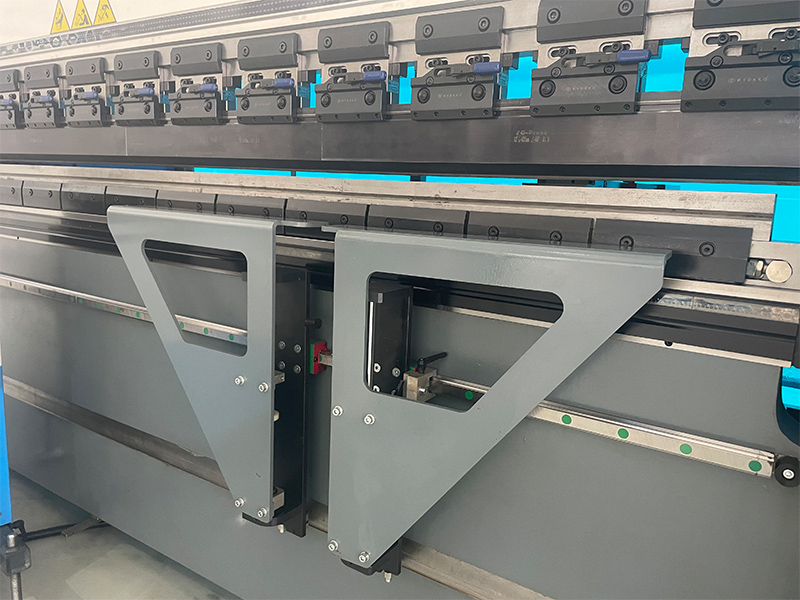

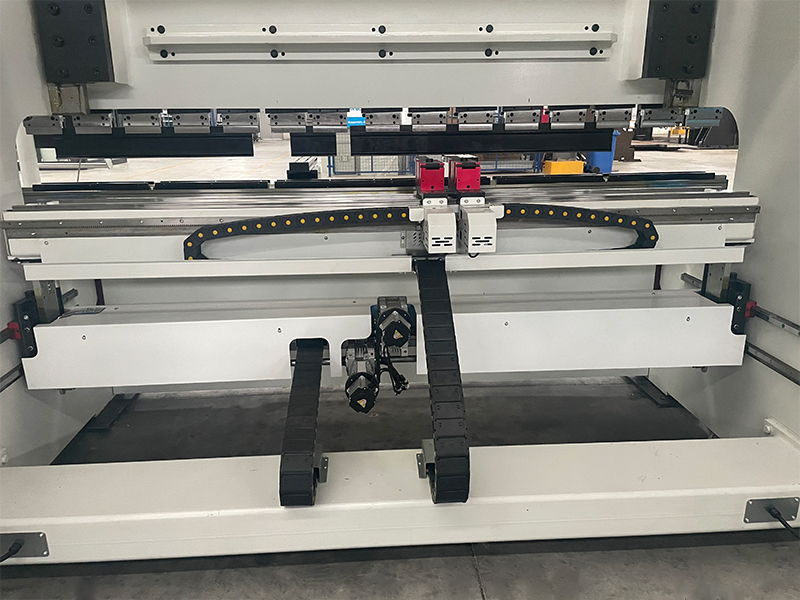

The back gauge system is an important part of the press brake which guarantees the dimensional accuracy of the bending products. Each back gauge finger used by G-Press are patented and designed to avoid collision.
Based on specific customer’s working condition, there are different type of back gauge fingers available: standard, special-shape, pneumatic telescopic finger etc.
PAGE 20 BACK GAUGE MODELS AVAILABLE
GHP-2 (X-R axes) with 2 standard manual fingers
GHP-4 (X-R-Z1-Z2 axes) with 2 CNC controlled fingers
GHP-5 (X-R-Z1-Z2-X5 axes) with 2 CNC controlled fingers
BACK GAUGE MAIN PARAMETER WE CHECK TOGETHER DURING CALL

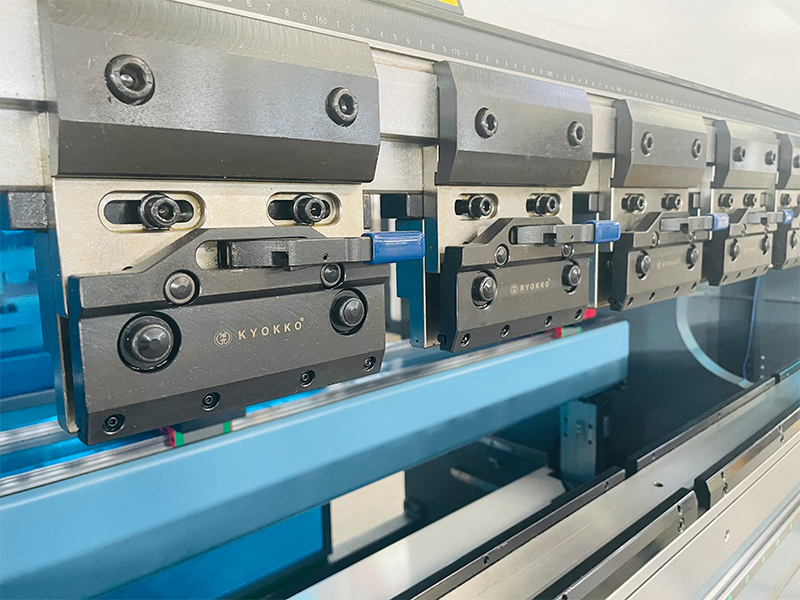

Top tool clamping

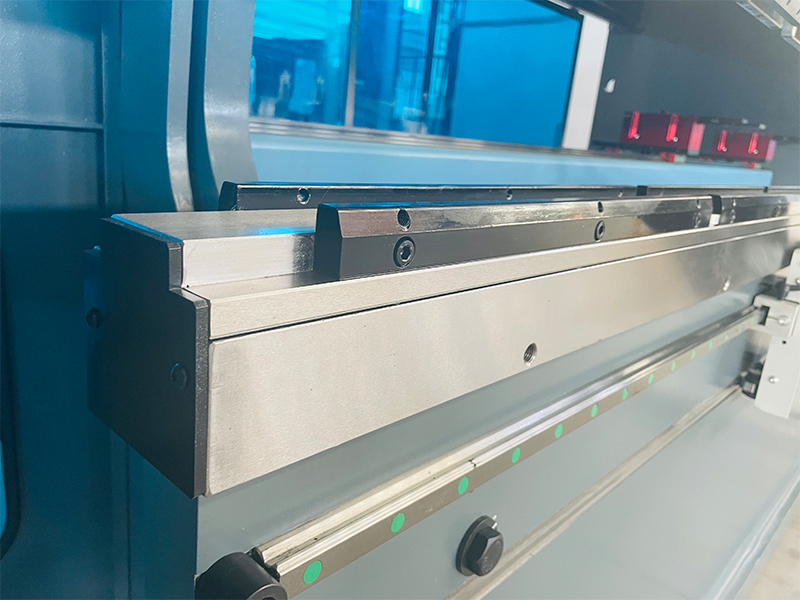

Manual bottom tool clamping mod. GSB-M
Self-centering type. Available for 60-90 mm dies.
Bottom tool clamping
Hydraulic bottom tool clamping mod. GSB-H
With Ty-adjustment function. Allows to adjust in Y direction every 200 mm which makes thus compensating the unavoidable tolerances mistake which accumulate during bending process. it possible to fully compensate for unavoidable -cumulative -processing tolerances in the press brake. I need a little clarification to make sure my translation is correct.
LED bar

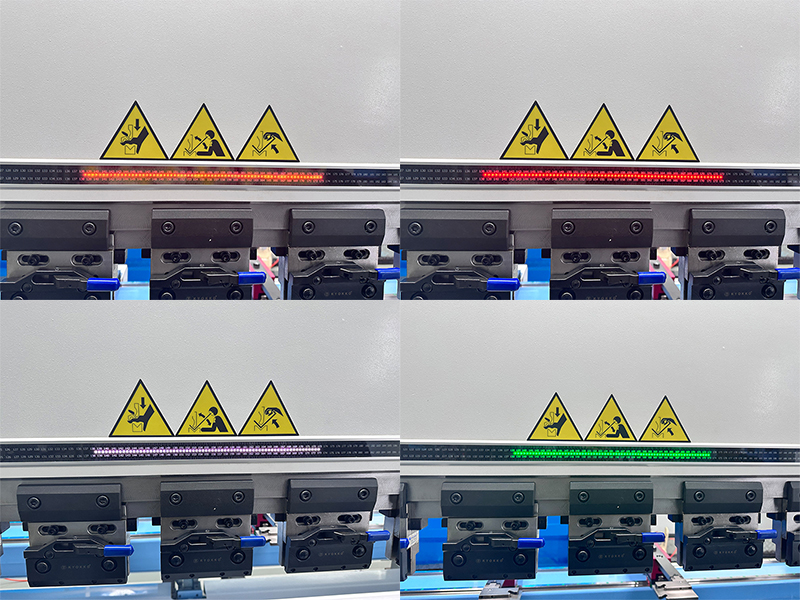

The LED bar is installed on the upper beam of the bending machine (above the upper mold fixture), and the system is used in conjunction with the backgauge finger of the bending machine, and the LED light of the area is displayed in real time following the length of the middle distance between the backgauge finger Z1 and Z2, so that the operator can clearly and effectively grasp the real-time position of the backgauge finger and the required bending length.

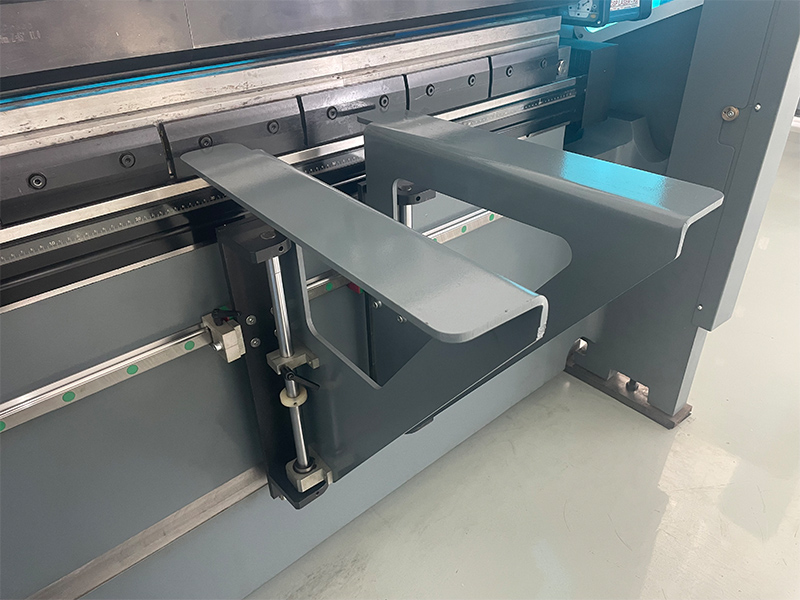

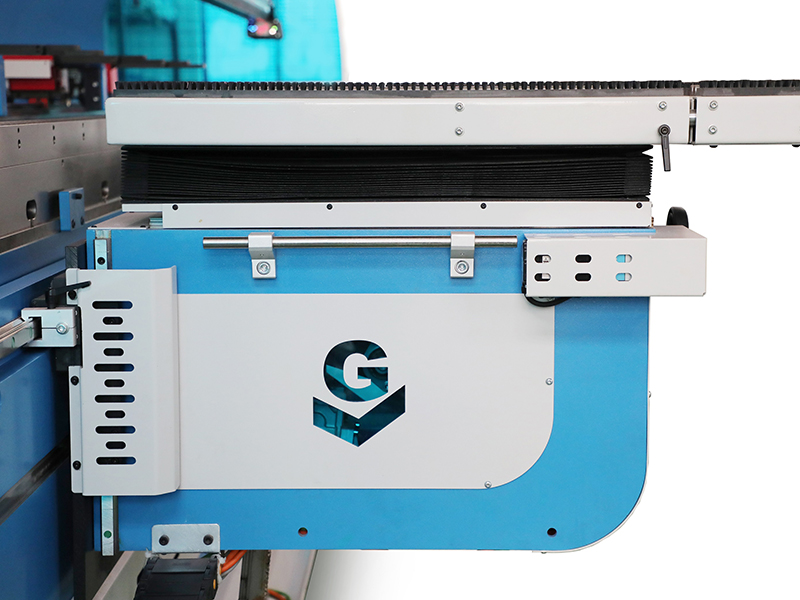

Front support arms EZ type
GHM and GHB machines use the EZ model for manual sliding front support

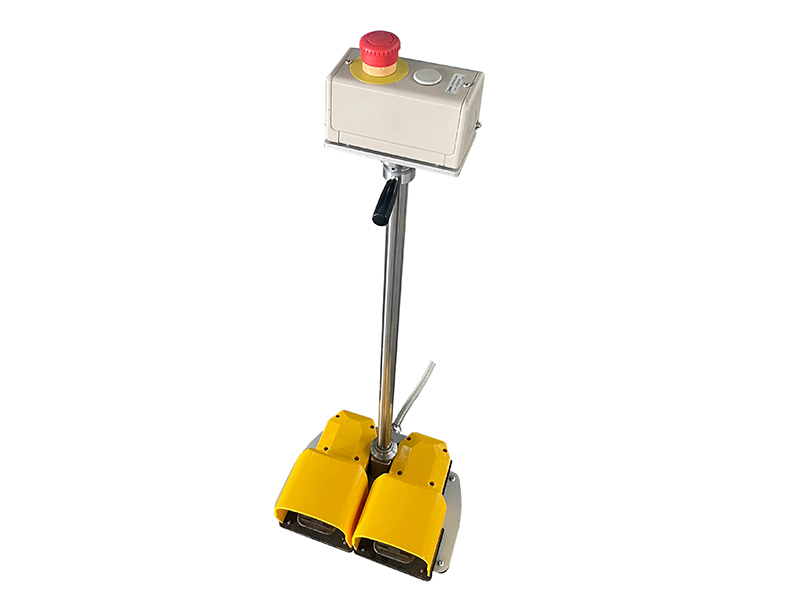

Safety foot pedal
peculiarity：
1.Imported Italian PIZZATO pedal accessories
2.With a safety lever, the foot must be fully inserted before it can be stepped on
3.Three-level safety design to prevent malfunction in panic state
4.The cable is a flexible shielded snakeskin hose cable
Optional
Laser safety device
MSD
Main Technical Features:
DSP
Main Technical Features:
?Laser protection, Multi beam Receiver
DSP AP+MCS

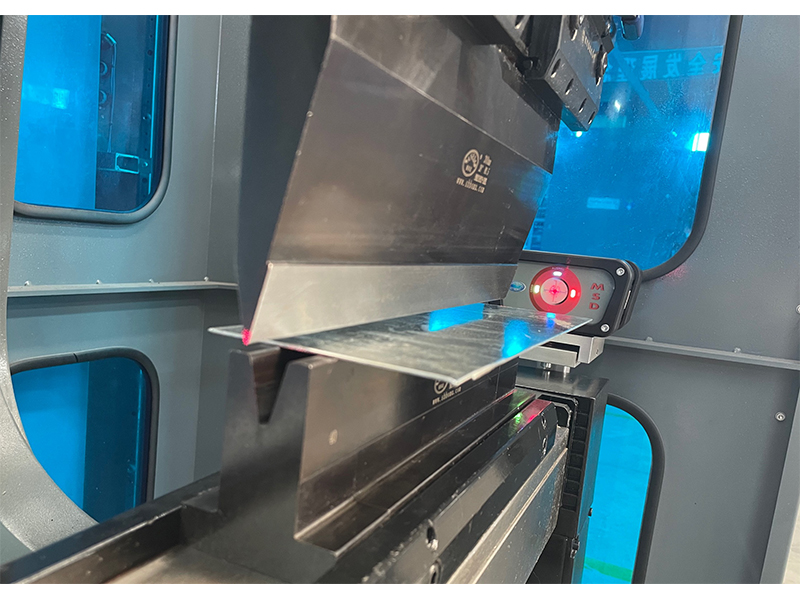

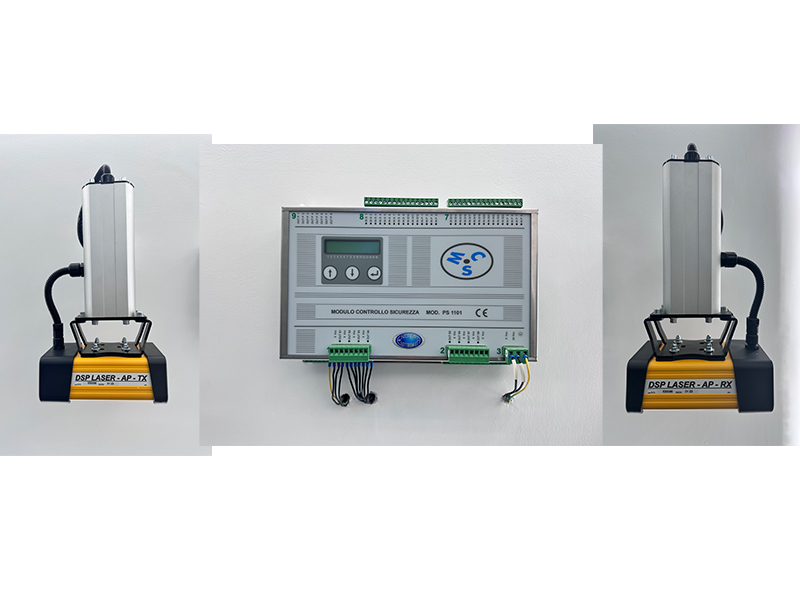

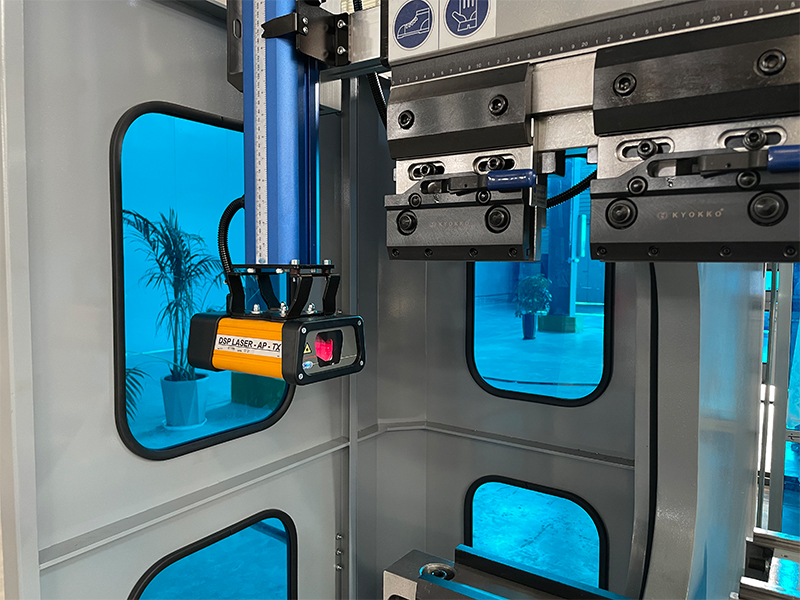

The safety device DSP LASER AP is a visible laser emission barrier which, realized and placed as described in Standard EN12622, protects the operator of the press brake against the danger to be squashed between the upper tool and the lower tool during the closing of the press in high speed. The device is constituted by a transmitter TX, which generates the laser emission, and by a receiver RX, which receives it and transmits the processing of the received signals to MCS module.
Sheet follower
CNC sheet follower

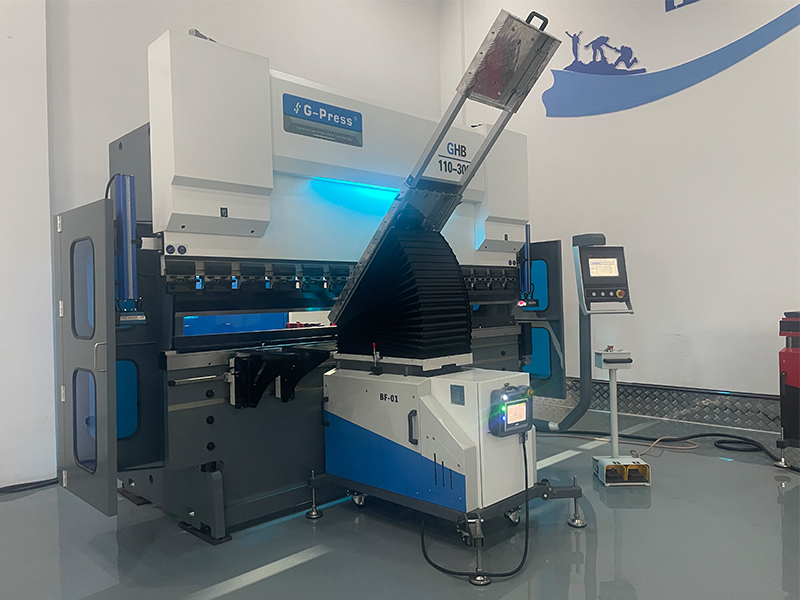

Sheet follower BF-01
Special feature:
The single unit sheet follower is equipped with wheels which allows the possibility to be used on different press brakes which however need to be interfaced in advance. It can be sold separately and realize a multi-platform sharing mode with moving.
